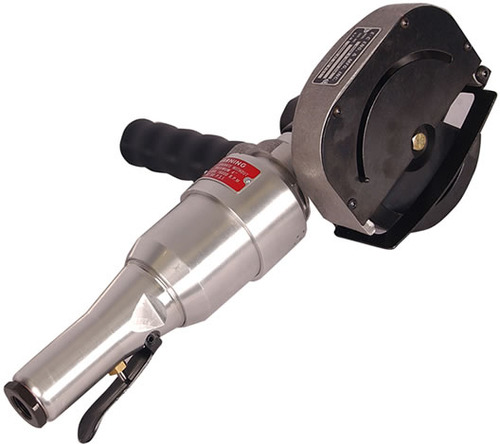

EC-600 Saw Features
- Retracting blade guard for safe operation
- Heavy steel gear housing
- Heat treated precision bevel gears
- Muffled exhaust
- Specifications
- Free Speed – 16,000 RPM
- Blade Capacity – 4 inches (Blade not included)
- Length – 13 inches
- Width – 4 1/2 inches (Handle adds 4 1/2 inches more)
- Weight – 8 pounds
- Minimum Hose Size – 1/2 inch
- Air Intake (FPT) – 3/8 inch
- Maximum Cut Depth – 0 to 1 inch
- Arbor Diameter – 1/2 inch

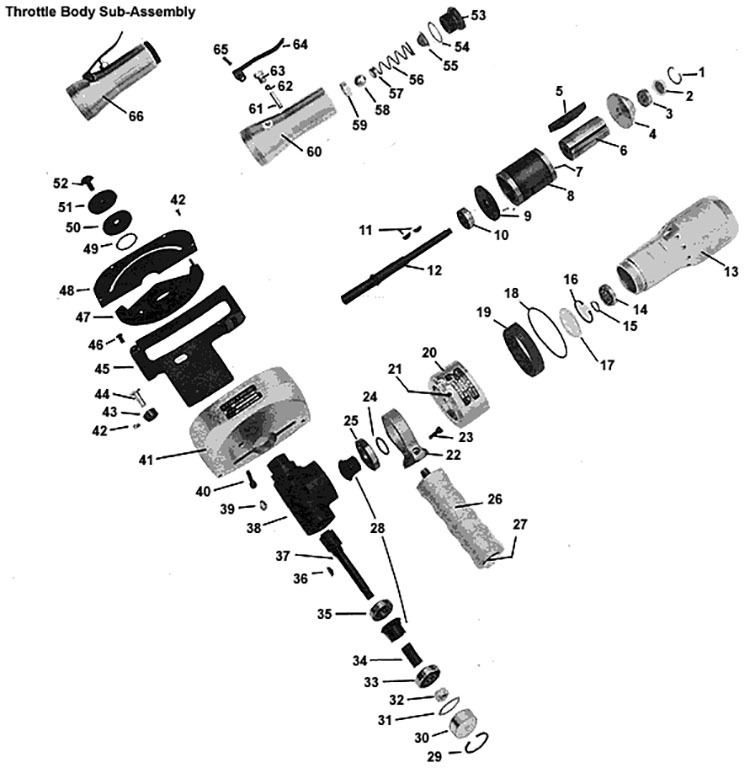

EC-600 Product Illustration
Click diagram to enlarge
EC-600 Saw Parts List (Right Hand)
1 - EC 4227 Retaining Ring, 1
2 - EC 4226 Nylon Bearing Cap, 1
3 - EC 1532 Rear Ball Bearing (Rotor/Shaft), 1
4 - EC 3237 Bearing Plate (Rear), 1
5 - EC 3236 Rotor Blade, 4
6 - EC 3234 Rotor, 1
7 - EC 3162 Cylinder Pin (not shown), 1
8 - EC 3225 Cylinder, 1
9 - EC 9183 Bearing Plate (Front), 1
10 - EC 9265 Front Ball Bearing (Rotor/Shaft), 1
11 - EC 3365 Key (Rotor/Gear), 2
12 - EC 9971 Rotor Shaft, 1
13 - EC 9973 Motor Housing, 1
14 - EC 9159 Shaft Bearing (Front), 1
15 - EC 7709 Rotor Shaft Retainer Ring, 1
16 - EC 9268 Bearing Retainer Ring, 1
17 - EC 7015 Head Positioning Spacer (0.002 inch), *
17 - EC 7016 Head Positioning Spacer (0.005 inch), *
17 - EC 7017 Head Positioning Spacer (0.010 inch), *
17 - EC 7018 Head Positioning Spacer (0.015 inch), *
18 - EC 5018 O-Ring, 1
19 - EC 5017 Felt Insert, 1
20 - EC 5016 Muffler Housing, 1
21 - EC 1080 Set Screw, 1
22 - EC 3261 Clamp, 1
23 - EC 9988 Screw, 1
24 - EC 9999 Gear Retainer Ring, 1
25 - EC 4471 Gear Bearing, 1
26 - EC 3050 Handle, 1
27 - EC 3078 Carriage Bolt, 1
28 - EC 1177 Gear Set (Includes Both Gears), 1
29 - EC 4164 Bearing Cap Retainer Ring, 1
30 - EC 9974 Bearing Cap, 1
31 - EC 2695 Bearing Cap Spacer (0.002 inch), *
31 - EC 2696 Bearing Cap Spacer (0.003 inch), *
31 - EC 2697 Bearing Cap Spacer (0.005 inch), *
32 - EC 9993 Lock Nut, 1
33 - EC 9992 Cutter Shaft Bearing (Rear), 1
34 - EC 9976 Gear Spacer, 1
35 - EC 9991 Cutter Shaft Bearing (Front), 1
36 - EC 3365 Key (Rotor/Gear)**, 1
37 - EC 9977 Cutter Shaft-RH, 1
38 - EC 4354 Gear Housing-RH, 1
39 - EC 3312 Grease Fitting, 1
40 - EC 9995 Lock Screw (Handle/Housing), 1
41 - EC 4369 Cutter Housing-RH, 1
42 - EC 2450 Spring Screw (Short), 5
43 - EC 4358 Return Spring (Double), 1
44 - EC 4656 Spring Retainer, 1
45 - EC 4372 Cutter Slide-RH, 1
46 - EC 2667 Slide Screw, 3
47 - EC 4373 Cutter Guard-RH, 1
48 - EC 4370 Housing Cover, 1
49 - EC 4364 Guard Retainer Ring, 1
50 - EC 9998 Cutter Adapter, 1
51 - EC 9997 Cutter Retainer, 1
52 - EC 9996 Arbor Bolt-RH, 1
# - EC 9975 Bearing Cap Screw, 1
EC 8720 Throttle Body Assembly (Index 66)
53 - EC 3102 Hose Adapter, 1
54 - EC 3109 Hose Adapter Gasket, 1
55 - EC 3110 Air Screen, 1
56 - EC 8725 Tapered Spring, 1
57 - EC 8724 Spring Retainer, 1
58 - EC 8723 Steel Ball-Valve, 1
59 - EC 8722 Valve Seat, 1
60 - EC 8721 Throttle Body (Housing), 1
61 - EC 8727 Plunger, 1
62 - EC 8726 O-Ring, 1
63 - EC 8728 Bushing, 1
64 - EC 8729 Throttle Lever, 1
65 - EC 8718 Throttle Lever Pin, 1
#Not shown on drawing
*Number of spacers required is variable
**Current models use gear key EC 3365 (3/32 inch thick); older models use gear key EC 9989 (1/16 inch thick)
Saw Blades (Sold Separately)
EC 7112 - 4 inch saw blade (12, 24 or 36 teeth)
EC 7114 - 4 inch saw blade (12 teeth, carbide tipped)
EC-600 Saw Parts List (Left Hand)
1 - EC 4227 Retaining Ring, 1
2 - EC 4226 Nylon Bearing Cap, 1
3 - EC 1532 Rear Ball Bearing (Rotor/Shaft), 1
4 - EC 3237 Bearing Plate (Rear), 1
5 - EC 3236 Rotor Blade, 4
6 - EC 3234 Rotor, 1
7 - EC 3162 Cylinder Pin, 1
8 - EC 3225 Cylinder, 1
9 - EC 9183 Bearing Plate (Front), 1
10 - EC 9265 Front Ball Bearing (Rotor/Shaft), 1
11 - EC 3365 Key (Rotor/Gear), 2
12 - EC 9971 Rotor Shaft, 1
13 - EC 9973 Motor Housing, 1
14 - EC 9159 Shaft Bearing (Front), 1
15 - EC 7709 Rotor Shaft Retainer Ring, 1
16 - EC 9268 Bearing Retainer Ring, 1
17 - EC 7015 Head Positioning Spacer (0.002 inch), *
17 - EC 7016 Head Positioning Spacer (0.005 inch), *
17 - EC 7017 Head Positioning Spacer (0.010 inch), *
17 - EC 7018 Head Positioning Spacer (0.015 inch), *
18 - EC 5018 O-Ring, 1
19 - EC 5017 Felt Insert, 1
20 - EC 5016 Muffler Housing, 1
21 - EC 1080 Set Screw, 1
22 - EC 3261 Clamp, 1
23 - EC 9988 Screw, 1
24 - EC 9999 Gear Retainer Ring, 1
25 - EC 4471 Gear Bearing, 1
26 - EC 3050 Handle, 1
27 - EC 3078 Carriage Bolt, 1
28 - EC 1177 Gear Set (Includes Both Gears), 1
29 - EC 4164 Bearing Cap Retainer Ring, 1
30 - EC 9974 Bearing Cap, 1
31 - EC 2695 Bearing Cap Spacer (0.002 inch), *
31 - EC 2696 Bearing Cap Spacer (0.003 inch), *
31 - EC 2697 Bearing Cap Spacer (0.005 inch), *
32 - EC 9993 Lock Nut, 1
33 - EC 9992 Cutter Shaft Bearing (Rear), 1
34 - EC 9976 Gear Spacer, 1
35 - EC 9991 Cutter Shaft Bearing (Front), 1
36 - EC 3365 Key (Rotor/Gear)**, 1
37 - EC 9978 Cutter Shaft-LH, 1
38 - EC 4356 Gear Housing-LH, 1
39 - EC 3312 Grease Fitting, 1
40 - EC 9995 Lock Screw (Handle/Housing), 1
41 - EC 4368 Cutter Housing-LH, 1
42 - EC 2450 Spring Screw (Short), 5
43 - EC 4358 Return Spring (Double), 1
44 - EC 4656 Spring Retainer, 1
45 - EC 4371 Cutter Slide-LH, 1
46 - EC 2667 Slide Screw, 3
47 - EC 4374 Cutter Guard-LH, 1
48 - EC 4370 Housing Cover, 1
49 - EC 4364 Guard Retainer Ring, 1
50 - EC 9998 Cutter Adapter, 1
51 - EC 9997 Cutter Retainer, 1
52 - EC 9994 Arbor Bolt-LH, 1
# - EC 9975 Bearing Cap Screw, 1
EC 8720 Throttle Body Assembly (Index 66)
53 - EC 3102 Hose Adapter, 1
54 - EC 3109 Hose Adapter Gasket, 1
55 - EC 3110 Air Screen, 1
56 - EC 8725 Tapered Spring, 1
57 - EC 8724 Spring Retainer, 1
58 - EC 8723 Steel Ball-Valve, 1
59 - EC 8722 Valve Seat, 1
60 - EC 8721 Throttle Body (Housing), 1
61 - EC 8727 Plunger, 1
62 - EC 8726 O-Ring, 1
63 - EC 8728 Bushing, 1
64 - EC 8729 Throttle Lever, 1
65 - EC 8718 Throttle Lever Pin, 1
#Not shown on drawing
*Number of spacers required is variable
**Current models use gear key EC 3365 (3/32 inch thick); older models use gear key EC 9989 (1/16 inch thick)
Saw Blades (Sold Separately)
EC 7112 - 4 inch saw blade (12, 24 or 36 teeth)
EC 7114 - 4 inch saw blade (12 teeth, carbide tipped)
EC-600 Saw Service & Maintenance Instructions
Operation:
The tool is designed to operate on 90 PSI air pressure using a 3/8 inch hose up to 8 feet in length. If additional hose is required, a 1/2 inch or larger hose should be connected to the 3/8 inch hose.
Lubrication:
An automatic in-line filter-lubrication is highly recommended to increase tool life as well as keeping the tool in sustained operation. If in-line lubrication is not used, the tool should be lubricated several times daily by disconnecting the air hose and pouring a few drops of a good grade of No. 10W machine oil into the air inlet.
The angle head should be greased every forty (40) hours of operation with a good grade of grease, using a low pressure grease gun.
Disassembly:
- To disassemble the tool:
- Clamp tool in a soft-jawed vise and unscrew (left hand threads) the gear housing from the motor housing.
- Unscrew the throttle body sub-assembly.
- Clamp tool in a soft-jawed vise and unscrew (left hand threads) the gear housing from the motor housing.
- To disassemble the gear housing:
- Pull out the bevel gear with the attached gear bearing.
- Removing the bearing cap retainer ring will allow the cutter shaft and attached components to be pressed out the rear of the gear housing.
- Unscrew the lock nut and remove the rear cutter shaft bearing gear spacer, gear key, and front cutter shaft bearing from the cutter shaft.
- Note: To unscrew or tighten the arbor bolt, remove 1/4 - 28 button head cap screw and insert a 3/16 inch hex allen wrench into the opening in the bearing cap to reach the internal hex in the end of the cutter shaft.
- Pull out the bevel gear with the attached gear bearing.
- To disassemble the motor unit:
- Remove the retainer ring from the rotor shaft and gently slip the complete motor unit out the rear of the motor housing.
- Remove the retainer ring and the nylon bearing cap from the rear bearing plate.
- Clamp the cylinder in the vise with spline end of the rotor shaft down.
- Using a suitable driver, drive the rotor shaft out of the rear rotor bearing.
- All of the motor unit parts may now be removed from the rotor shaft.
- Unscrew the hose adapter to remove the air screen for cleaning and inspection.
- Remove the retainer ring from the rotor shaft and gently slip the complete motor unit out the rear of the motor housing.
Tightening Saw Blade Instructions:
To unscrew or tighten the arbor bolt, remove the 1/4 – 28 button head cap screw and insert a 3/16 inch allen wrench.
Product Safety Warnings
For your safety, make sure you apply standard shop practices at all times when using this tool. Your failure to apply these practices may result in serious bodily injury.
Protect your eyes, ears, and other parts of your body by using safety equipment - respirator, safety goggles, ear mufflers and other necessary safety devices - at all times when operating this tool or when you are in the area where this tool is being operated.
For maximum stability and safety, only operate these tools with both hands on the tool. Follow the cutting tool manufacturer’s mounting and operating instructions and avoid any direct contact with the sharp cutting edges of the tool.
Modification or improper use of this tool, including, but not limited to, removing guards, mufflers, or other safety devices, voids all responsibilities of the manufacturer.
Excessive air pressure, over and above 90 PSI, will increase the RPM, the sound level, and can be a damaging factor to both the operator and the tool.
Stay alert! Watch what you are doing! Do not operates this tool when under the influence of medication, alcohol, or drugs!
Disconnect the air supply before changing the cutter and whenever making adjustments or repairs.
Do not remove warning tags until both sides have been read and understood by the person(s) responsible for safety in your plant.
If you need any other information, consult your supervisor or contact:
EC Eng. & Mfg., Inc.
P.O. Box 1090
Mountain Home, AR 72654-1090
Phone: (870) 425-3979
Fax: (870) 424-2228
Email: info@ecengmfg.com
