EC-7C

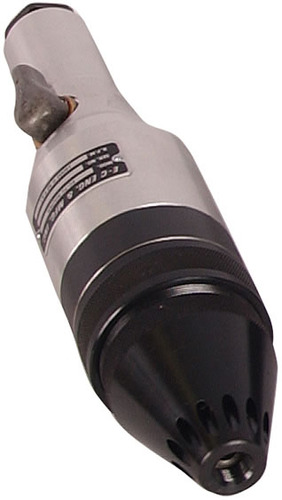

EC-7C Router Features

  • Compact Design
  • Flip throttle or optional Dead Man Lever (DML) for operator's ease and comfort
  • High power output in relation to its size
  • Designed to be hand-operated, but equally suitable for fixture mounting
  • Collet spindle supported by high precision double-thrust bearings
  • For extra stability, the shank of the router bit is supported by an outboard bearing
  • Router nose is easily adjustable for different cutting depth
  • A steady stream of exhaust air is blown from strategically positioned ports in
    front of the nose, thus blowing away the chips or shavings from the cutting area
  • To accept standard guide bushings
    • The EC 9188 – 1/4 inch nose has a 1/2 - 20 THD
    • The EC 9187 – 3/8 inch nose has a 5/8 - 18 THD
    • The EC 9182 – 1/2 inch nose has a 11/16 - 16 THD
  • Specifications
    • Speed - 16,000 RMS
    • Length - 11 inches
    • Diameter - 2 1/2 inches
    • Weight - 4 3/4 pounds
    • Collet Sizes - 1/4, 3/8, and 1/2 inch
    • Minimum Hose Size - 3/8 inch
    • Air Intake (FPT) - 3/8 inch
    • Exhaust - Front Ported

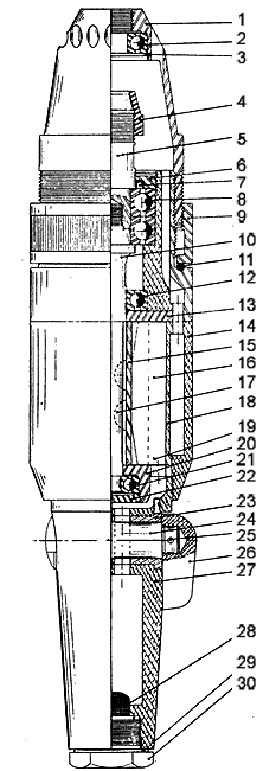

EC-7C Product Illustration

Click diagram to enlarge

EC-7C Router Parts List (Quackenbush Type Flip Throttle)

Index, Part #, Description, Quantity

1 - See Chart Nose, 1
2 - See Chart Ball Bearing, 1
3 - See Chart Retaining Ring, 1
4 - See Chart Collet Nut, 1
5 - See Chart Collet Spindle, 1
6 - EC 9180 Retaining Ring, 1
7 - EC 9170 Grease Seal, 1
8 - EC 9266 Ball Bearing (Requires 2), 2
9 - EC 9179 Lock Nut, 1
10 - EC 8702 Drive Shaft, 1
11 - EC 9192 O-Ring, 1
12 - EC 9265 Front Ball Bearing (Rotor/Shaft), 1
13 - EC 9183 Bearing Plate (Front), 1
14 - EC 9175 Motor Housing, 1
15 - EC 3234 Rotor, 1
16 - EC 3236 Rotor Blade, 4
17 - EC 3365 Key (Rotor/Gear), 2
18 - EC 3225 Cylinder, 1
19 - EC 3162 Cylinder Pin, 1
20 - EC 3237 Bearing Plate (Rear), 1
21 - EC 1532 Rear Ball Bearing (Rotor/Shaft), 1
22 - EC 4226 Nylon Bearing Cap, 1
22 - EC 4227 Retaining Ring, 1
EC 1253 Throttle Body Sub-Assembly**
23 - EC 9701 Valve Stop Pin (Not Shown), 1
23 - EC 9185 Valve Bushing, 1
24 - EC 9186 Valve, 1
24 - EC 3399 O-Ring (Not Shown), 2
25 - EC 3280 Throttle Lever Pin, 1
26 - EC 3252 Throttle Lever, 1
27 - EC 9184 Throttle Body*, 1
28 - EC 3110 Air Screen, 1
29 - EC 3109 Hose Adapter Gasket, 1
30 - EC 3102 Hose Adapter, 1

*EC 9184 - Throttle Body includes EC 9185 - Valve Bushing and EC 9701 - Valve Stop Pin

**For a complete Throttle Body Sub-Assembly, Order EC 1253

EC-7C Router Parts List (Quackenbush Type DML)

Index, Part #, Description, Quantity

1 - See Chart Nose, 1
2 - See Chart Ball Bearing, 1
3 - See Chart Retaining Ring, 1
4 - See Chart Collet Nut, 1
5 - See Chart Collet Spindle, 1
6 - EC 9180 Retaining Ring, 1
7 - EC 9170 Grease Seal, 1
8 - EC 9266 Ball Bearing (Requires 2), 2
9 - EC 9179 Lock Nut, 1
10 - EC 8702 Drive Shaft, 1
11 - EC 9192 O-Ring, 1
12 - EC 9265 Front Ball Bearing (Rotor/Shaft), 1
13 - EC 9183 Bearing Plate (Front), 1
14 - EC 9175 Motor Housing, 1
15 - EC 3234 Rotor, 1
16 - EC 3236 Rotor Blade, 4
17 - EC 3365 Key (Rotor/Gear), 2
18 - EC 3225 Cylinder, 1
19 - EC 3162 Cylinder Pin, 1
20 - EC 3237 Bearing Plate (Rear), 1
21 - EC 1532 Rear Ball Bearing (Rotor/Shaft), 1
22 - EC 4226 Nylon Bearing Cap, 1
22 - EC 4227 Retaining Ring, 1
EC 8720 Throttle Body Sub-Assembly*
EC 3102 Hose Adapter, 1
EC 3109 Hose Adapter Gasket, 1
EC 3110 Air Screen, 1
EC 8725 Tapered Spring, 1
EC 8724 Spring Retainer, 1
EC 8723 Steel Ball-Valve, 1
EC 8722 Valve Seat, 1
EC 8721 Throttle Body (Housing), 1
EC 8727 Plunger, 1
EC 8726 O-Ring, 1
EC 8728 Bushing, 1
EC 8729 Throttle Lever, 1
EC 8718 Throttle Lever Pin, 1

*For a complete Throttle Body Sub-Assembly, order EC 8720

EC-7C Router Parts List (Erickson Type Flip Throttle)

Index, Part #, Description, Quantity

1 - See Chart Nose, 1
2 - See Chart Ball Bearing, 1
3 - See Chart Retaining Ring, 1
4 - See Chart Collet Nut, 1
   See Chart Collet, 1
5 - See Chart Collet Spindle, 1
6 - EC 9180 Retaining Ring, 1
7 - EC 9170 Grease Seal, 1
8 - EC 9266 Ball Bearing (Requires 2), 2
9 - EC 9179 Lock Nut, 1
10 - EC 8702 Drive Shaft, 1
11 - EC 9192 O-Ring, 1
12 - EC 9265 Front Ball Bearing (Rotor/Shaft), 1
13 - EC 9183 Bearing Plate (Front), 1
14 - EC 9175 Motor Housing, 1
15 - EC 3234 Rotor, 1
16 - EC 3236 Rotor Blade, 4
17 - EC 3365 Key (Rotor/Gear), 2
18 - EC 3225 Cylinder, 1
19 - EC 3162 Cylinder Pin, 1
20 - EC 3237 Bearing Plate (Rear), 1
21 - EC 1532 Rear Ball Bearing (Rotor/Shaft), 1
22 - EC 4226 Nylon Bearing Cap, 1
22 - EC 4227 Retaining Ring, 1
EC 1253 Throttle Body Sub-Assembly**
23 - EC 9701 Valve Stop Pin (Not Shown), 1
23 - EC 9185 Valve Bushing, 1
24 - EC 9186 Valve, 1
24 - EC 3399 O-Ring (Not Shown), 2
25 - EC 3280 Throttle Lever Pin, 1
26 - EC 3252 Throttle Lever, 1
27 - EC 9184 Throttle Body*, 1
28 - EC 3110 Air Screen, 1
29 - EC 3109 Hose Adapter Gasket, 1
30 - EC 3102 Hose Adapter, 1

*EC 9184 - Throttle Body includes EC 9185 - Valve Bushing and EC 9701 - Valve Stop Pin

**For a complete Throttle Body Sub-Assembly, order EC 1253

EC-7C Router Parts List (Erickson Type DML)

Index, Part #, Description, Quantity

1 - See Chart Nose, 1
2 - See Chart Ball Bearing, 1
3 - See Chart Retaining Ring, 1
4 - See Chart Collet Nut, 1
   See Chart Collet, 1
5 - See Chart Collet Spindle, 1
6 - EC 9180 Retaining Ring, 1
7 - EC 9170 Grease Seal, 1
8 - EC 9266 Ball Bearing (Requires 2), 2
9 - EC 9179 Lock Nut, 1
10 - EC 8702 Drive Shaft, 1
11 - EC 9192 O-Ring, 1
12 - EC 9265 Front Ball Bearing (Rotor/Shaft), 1
13 - EC 9183 Bearing Plate (Front), 1
14 - EC 9175 Motor Housing, 1
15 - EC 3234 Rotor, 1
16 - EC 3236 Rotor Blade, 4
17 - EC 3365 Key (Rotor/Gear), 2
18 - EC 3225 Cylinder, 1
19 - EC 3162 Cylinder Pin, 1
20 - EC 3237 Bearing Plate (Rear), 1
21 - EC 1532 Rear Ball Bearing (Rotor/Shaft), 1
22 - EC 4226 Nylon Bearing Cap, 1
22 - EC 4227 Retaining Ring, 1
EC 8720 Throttle Body Sub-Assembly*
EC 3102 Hose Adapter, 1
EC 3109 Hose Adapter Gasket, 1
EC 3110 Air Screen, 1
EC 8725 Tapered Spring, 1
EC 8724 Spring Retainer, 1
EC 8723 Steel Ball-Valve, 1
EC 8722 Valve Seat, 1
EC 8721 Throttle Body (Housing), 1
EC 8727 Plunger, 1
EC 8726 O-Ring, 1
EC 8728 Bushing, 1
EC 8729 Throttle Lever, 1
EC 8718 Throttle Lever Pin, 1

*For a complete Throttle Body Sub-Assembly, order EC 8720

When changing Collet size: Order corresponding Nose, Bearing, and Retaining Ring. See below.

Quackenbush Type Collet Spindle

Standard for 1/2 inch Collet Spindle.  Other sizes available as replacement parts only.

  • 1/4 Collet Spindle
    • EC 9190 Collet Spindle
    • EC 9181 Collet Nut
    • EC 9188 Nose
    • EC 9015 Ball Bearing
    • EC 9016 Retaining Ring
    • Nose Thread 1/2-20
  • 3/8 Collet Spindle
    • EC 9189 Collet Spindle
    • EC 9181 Collet Nut
    • EC 9187 Nose
    • EC 9019 Ball Bearing
    • EC 9017 Retaining Ring
    • Nose Thread 5/8-18
  • 1/2 Collet Spindle
    • EC 9177 Collet Spindle
    • EC 9181 Collet Nut
    • EC 9182 Nose
    • EC 9053 Ball Bearing
    • EC 9060 Retaining Ring
    • Nose Thread 11/16-16

Erickson Type Collet / Collet Spindle

Standard for 1/4 and 3/8 inch Collets.

  • 1/4 Collet / Collet Spindle
    • EC 8703 Collet
    • EC 8701 Collet Spindle
    • EC 8700 Collet Nut
    • EC 9188 Nose
    • EC 9015 Ball Bearing
    • EC 9016 Retaining Ring
    • Nose Thread 1/2-20
  • 3/8 Collet / Collet Spindle
    • EC 8705 Collet
    • EC 8701 Collet Spindle
    • EC 8700 Collet Nut
    • EC 9187 Nose
    • EC 9019 Ball Bearing
    • EC 9017 Retaining Ring
    • Nose Thread 5/8-18

EC–7C Router Service & Maintenance Instructions

Operation:

The tool is designed to operate on 90 PSI air pressure using a 3/8 inch hose up to 8 feet in length. If additional hose is required, a 1/2 inch or larger hose should be connected to the 3/8 inch hose.

Lubrication:

An automatic in-line filter lubricator is highly recommended to increase tool life as well as keeping the tool in sustained operation. If in-line lubricator is not used, the tool should be lubricated several times daily by disconnecting the air hose and injecting a few drops of a high grade No. 10W machine oil in the air inlet.

Disassembly:

Clamp the throttle body in a soft-jawed vise with the tool in a vertical position. After removing the nose and collet nut and using a suitable spanner wrench, unscrew (left hand threads) the bearing retainer ring. The motor housing may now be unscrewed from the throttle body with the aid of a strap wrench.

Bump the rear of the motor housing lightly on the bench to remove the motor unit from the rotor. The rotor shaft and related components may now be pressed out the front of the housing. The throttle valve may be removed by driving the throttle lever pin out of the throttle lever. Unscrew the hose adapter for inspection and cleaning of the air screen.

Product Safety Warnings

For your safety, make sure you apply standard shop practices at all times when using this tool. Your failure to apply these practices may result in serious bodily injury.

Protect your eyes, ears, and other parts of your body by using safety equipment - respirator, safety goggles, ear mufflers and other necessary safety devices - at all times when operating this tool or when you are in the area where this tool is being operated.

For maximum stability and safety, only operate these tools with both hands on the tool. Follow the cutting tool manufacturer’s mounting and operating instructions and avoid any direct contact with the sharp cutting edges of the tool.

Modification or improper use of this tool, including, but not limited to, removing guards, mufflers, or other safety devices, voids all responsibilities of the manufacturer.

Excessive air pressure, over and above 90 PSI, will increase the RPM, the sound level, and can be a damaging factor to both the operator and the tool.

Stay alert! Watch what you are doing! Do not operates this tool when under the influence of medication, alcohol, or drugs!

Disconnect the air supply before changing the cutter and whenever making adjustments or repairs.

Do not remove warning tags until both sides have been read and understood by the person(s) responsible for safety in your plant.

If you need any other information, consult your supervisor or contact:
