EC-200	EC-200-2.5	EC-300	EC-600

EC Eng. & Mfg. has three basic saw models: EC-200, EC-300, and EC-600.

The EC-200 Saw is a small, compact, yet powerful saw. It is designed to use 2 inch saw blades. With a speed of 20,000 RPM, it is ideal for cutting non-ferrous materials using carbide-tipped saw blades. A left-handed version of this tool is available by special order.

The EC-200-2.5 Saw is a variation of the EC-200 Saw with a 2 1/2 inch saw blade capacity.

The EC-300 Saw is designed for heavier cutting requirements. With a 3 1/4 inch saw blade, it is capable of cutting non-ferrous materials up to 1 inch thick.

The EC-600 Saw is designed for heavier cutting requirements. With a 4 inch saw blade, it is capable of cutting non-ferrous materials up to 1 inch thick. A left-handed version of this tool is available by special order.

Saw Models and Specifications

EC-200 Saw

• Free Speed – 20,000 RPM
• Blade Capacity – 2 inches *
• Length – 6 7/8 inches
• Width – 5 1/2 inches
• Weight – 3 pounds
• Minimum Hose Size – 5/16 inch
• Air Intake (FPT) – 1/4 inch
• Maximum Cut Depth – 0 to 1/4 inch
• Arbor Diameter – 7/16 inch

EC-200-2.5 Saw

• Free Speed – 20,000 RPM
• Blade Capacity – 2 1/2 inches *
• Length – 7 1/4 inches
• Width – 5 1/2 inches
• Weight – 3 pounds
• Minimum Hose Size – 5/16 inch
• Air Intake (FPT) – 1/4 inch
• Maximum Cut Depth – 0 to 1/2 inch
• Arbor Diameter – 7/16 inch

EC-300 Saw

• Free Speed – 18,000 RPM
• Blade Capacity – 3 1/4 inches *
• Length – 9 inches
• Width – 8 1/2 inches
• Weight – 8 pounds
• Minimum Hose Size – 1/2 inch
• Air Intake (FPT) – 3/8 inch
• Maximum Cut Depth – 0 to 1 inch
• Arbor Diameter – 3/4 inch

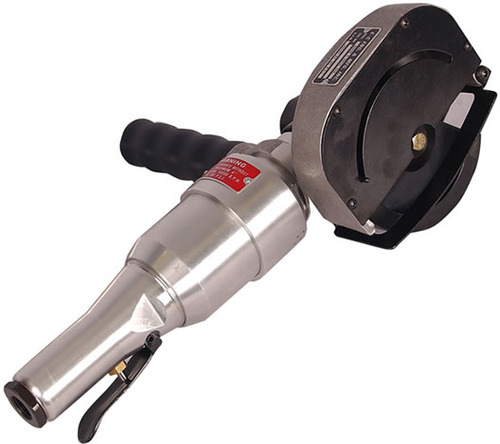

EC-600 Saw

• Free Speed – 16,000 RPM
• Blade Capacity – 4 inches *
• Length – 13 inches
• Width – 4 1/2 inches (Handle adds 4 1/2 inches more)
• Weight – 8 pounds
• Minimum Hose Size – 1/2 inch
• Air Intake (FPT) – 3/8 inch
• Maximum Cut Depth – 0 to 1 inch
• Arbor Diameter – 3/4 inch

* Blade not included
